Installing LMDE6 with full disk encryption using RAID, LUKS, LVM2 and USB unlock on a computer with a UEFI bootloader

Semyon A Mironov

by Semyon A Mironov, 5/2025

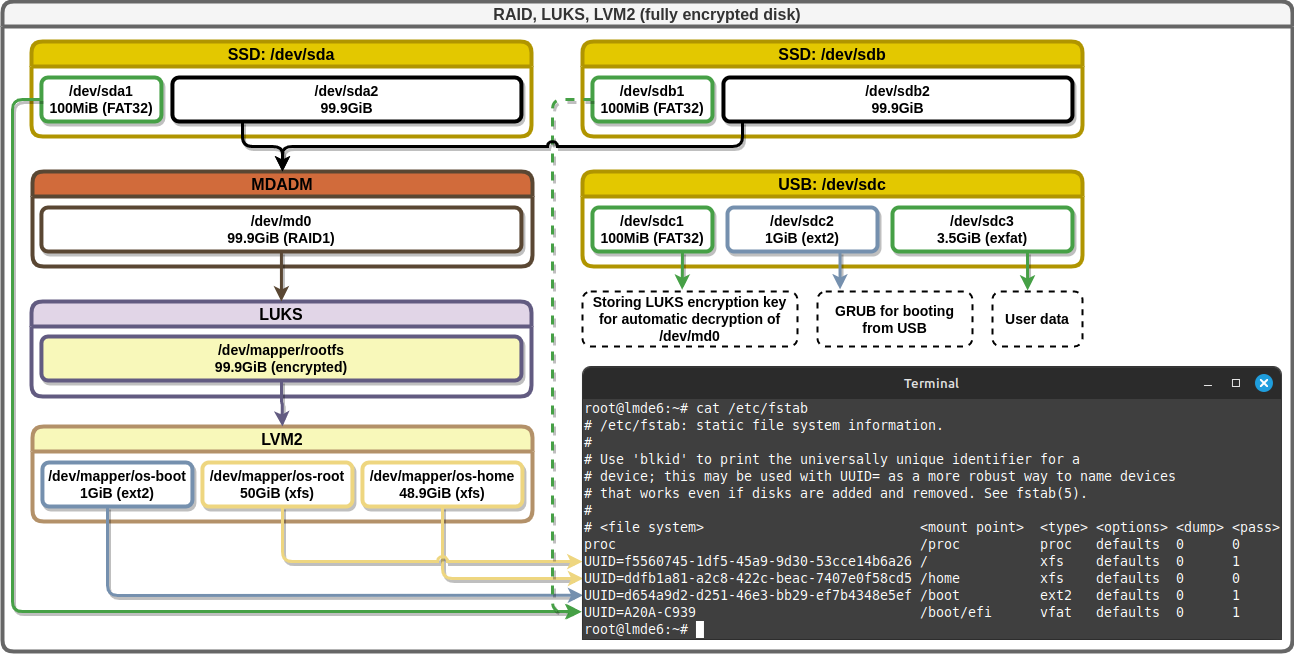

This document describes the creation of the following scheme

Disk marking scheme

Booting from a LIVE-iso
- Select booting from a USB/CD image
Preparing a LIVE system
- Change the host name
- Time setup in a LIVE system
Preparing the disks
Installing the LMDE operating system
Configuring the LMDE operating system
Useful links

Booting from a LIVE-iso

Select booting from a USB/CD image

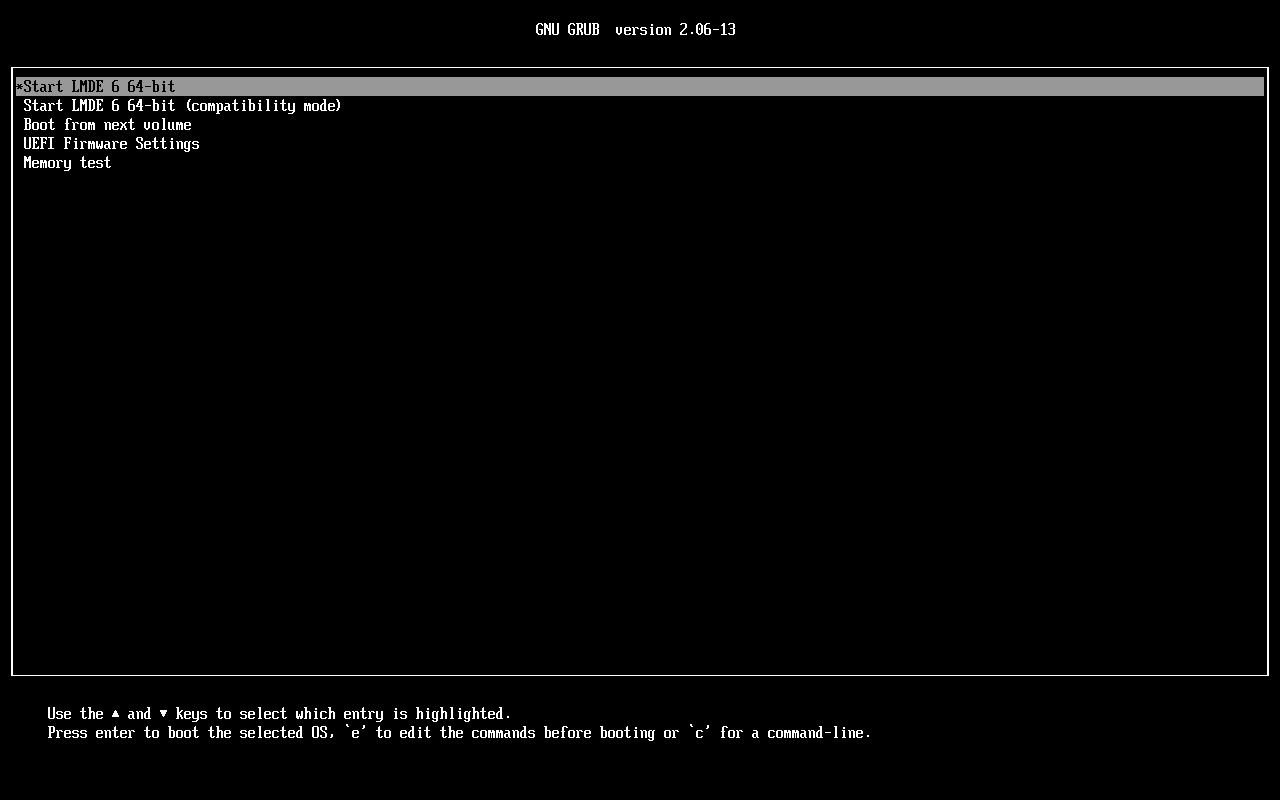

Select "Start LMDE 6 64-bit"

Start LMDE 6 64-bit

Press `e` to edit the commands before booting

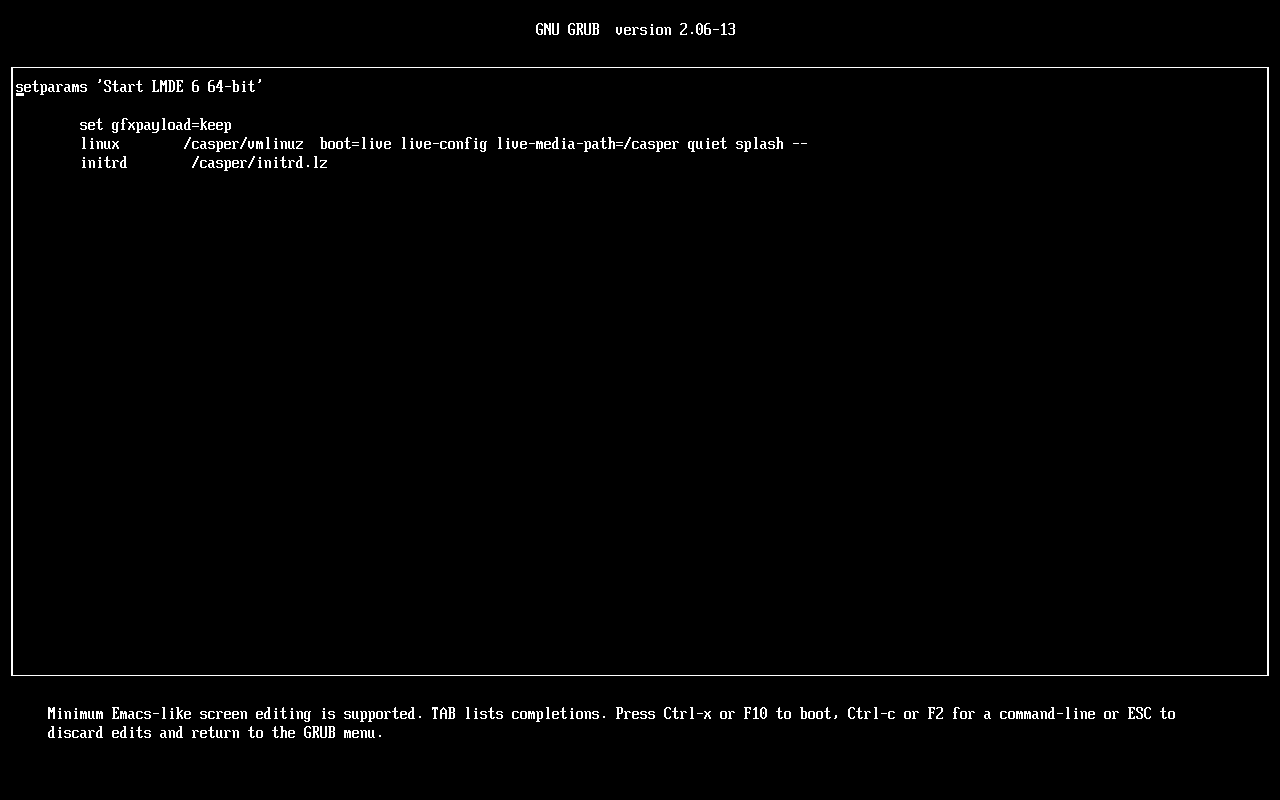

The kernel’s command-line parameters

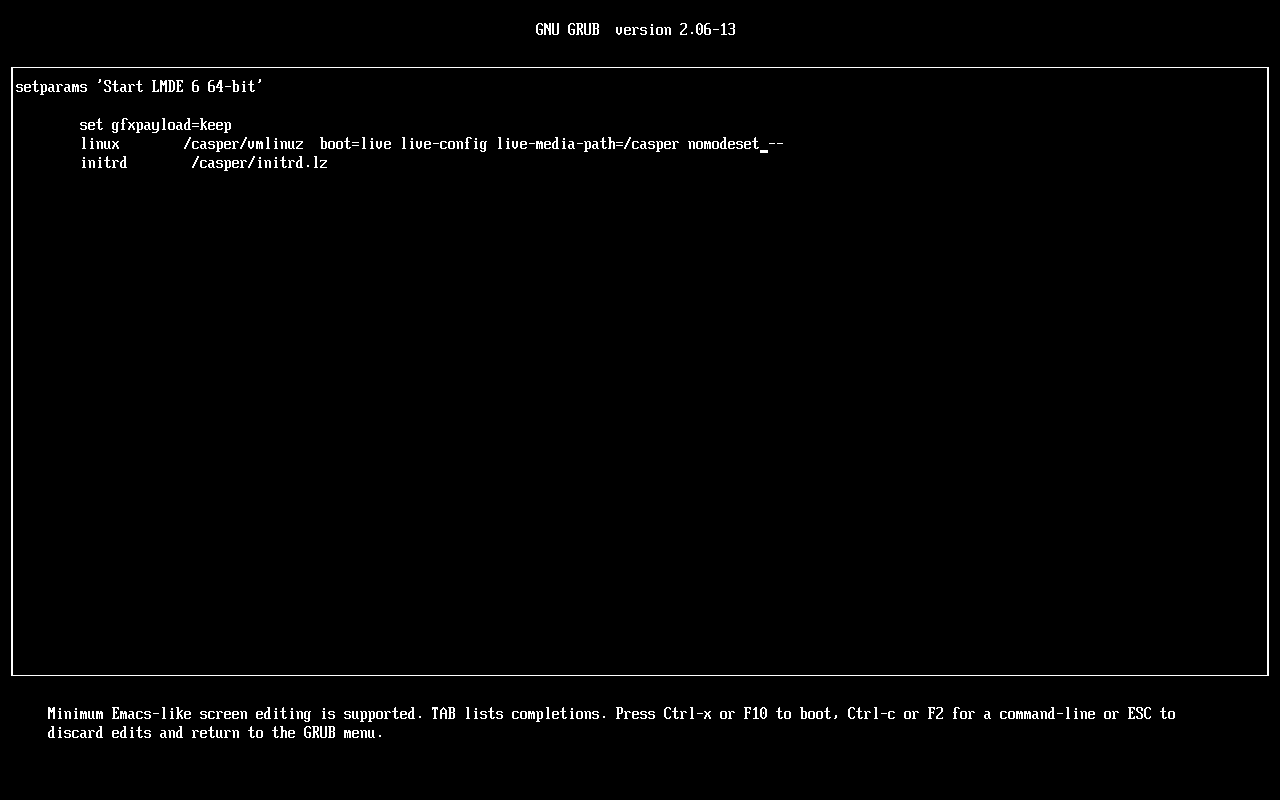

Add the `nomodeset` parameter and press `F10` to boot

Add the nomodeset parameter

The kernel’s command-line parameters

quiet and nomodeset

splash

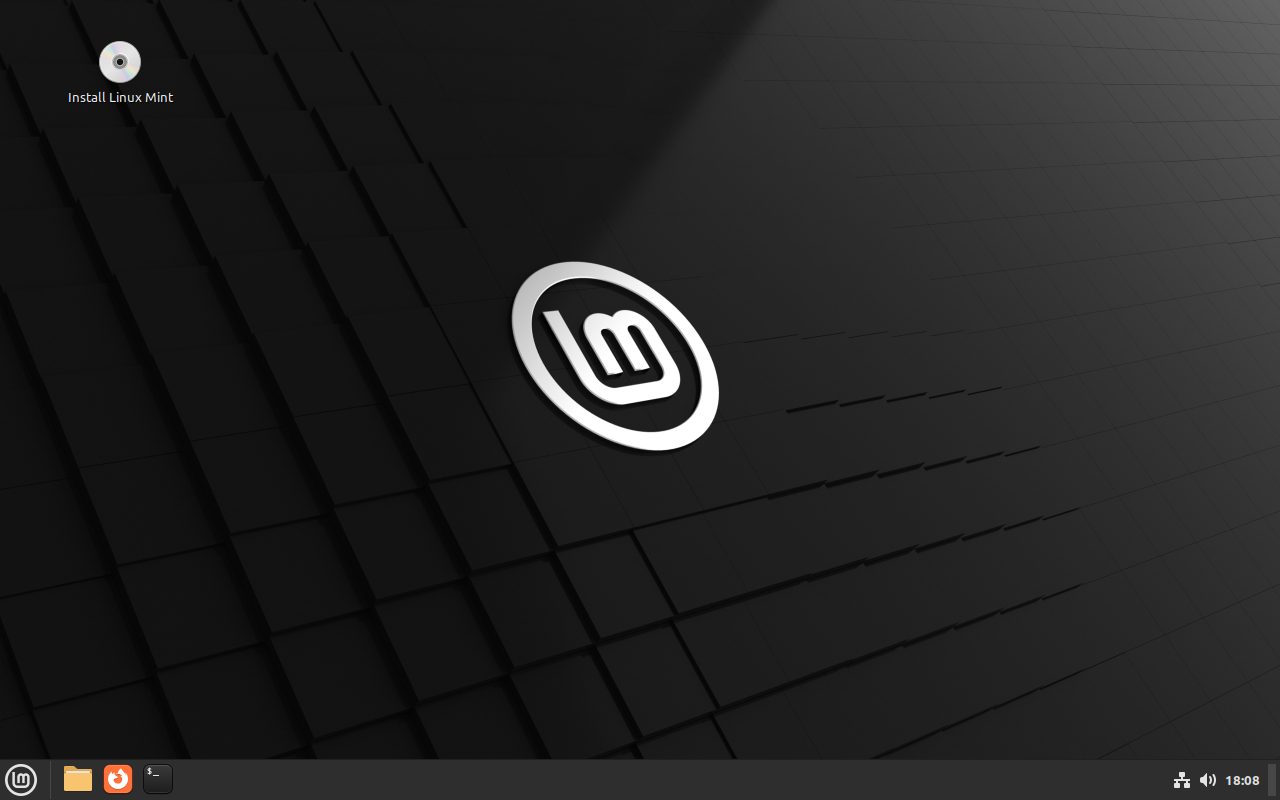

LMDE 6 Desktop live

Preparing a LIVE system

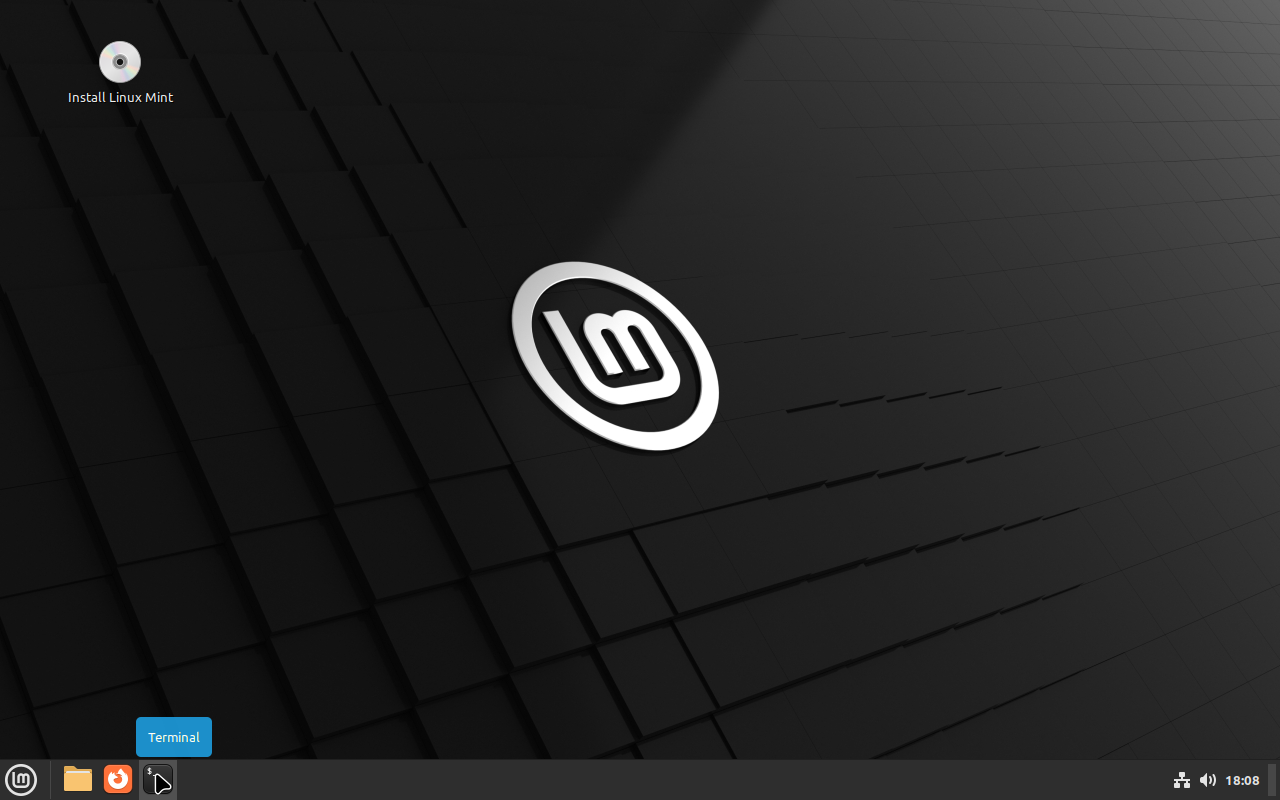

Open the terminal

LMDE 6 Open the terminal

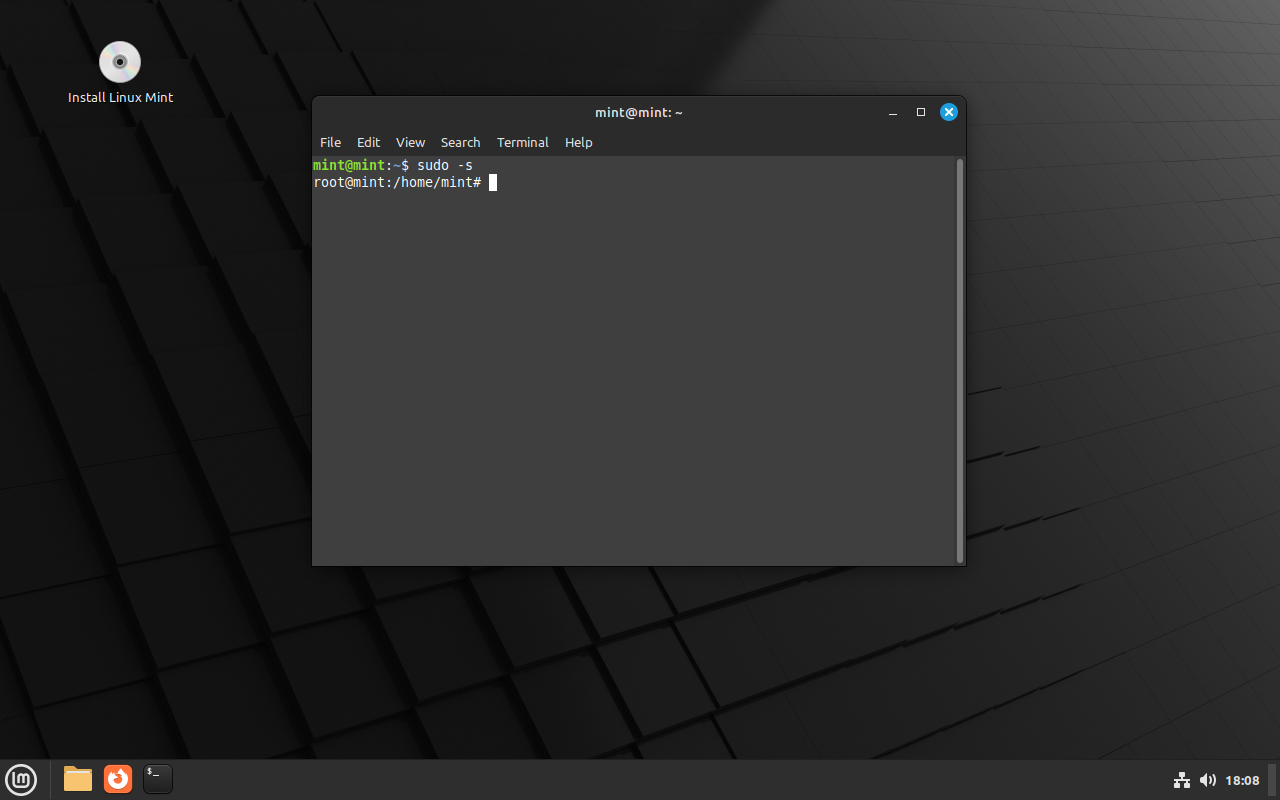

Switch to the root user

sudo -s

LMDE 6 Switch to the root user

Change the host name

export HOST_NAME="lmde"  # set a variable with a new host name for the operating system to install
hostname "$HOST_NAME"    # change the host name

Check

hostname

Time setup in a LIVE system

dpkg-reconfigure tzdata

Preparing the disks

Creating partitions

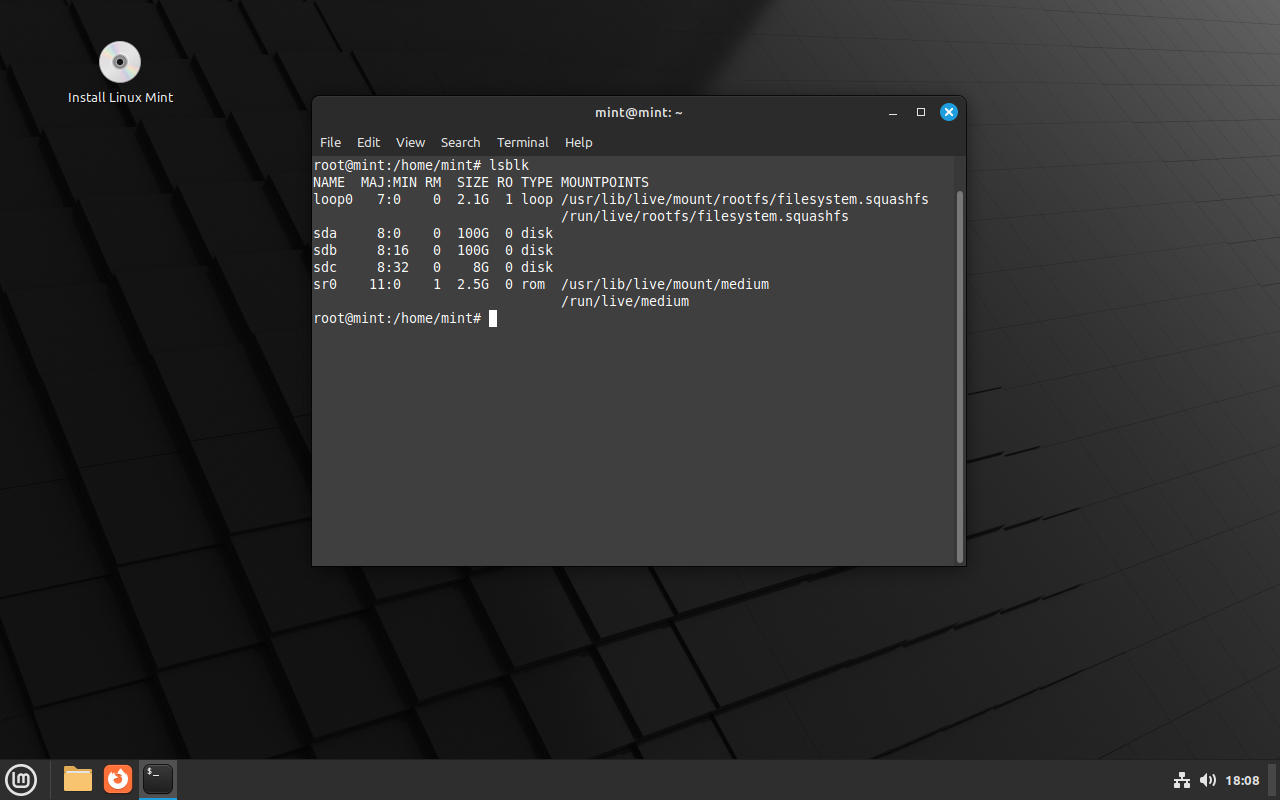

List information about block devices

lsblk

LMDE 6 List information about block devices

Save the disk names to variables

SDA="/dev/sda"
SDB="/dev/sdb"

Creating two partitions on `SDA` for `EFI` and mirror array

Run the fdisk program for the SDA disk:
```
fdisk "${SDA:-/dev/sda}"
```

Create partitions on the disk by following the following list of commands:

     m # print help
     p # print the partition table
     g # create a new empty GPT partition table
     n # add a new partition No.1
     1 # partition number
       # first sector (2048)
 +100M # last sector
     p # print the partition table
     n # add a new partition No.2
     2 # partition number
       # first sector (206848)
       # last sector
     p # print the partition table
     l # list known partition types
     q # quit from list known partition types
     t # change a partition type No.1
     1 # partition number
     1 # EFI System
     t # change a partition type No.2
     2 # partition number
    42 # Linux RAID
     p # print the partition table
     x # extra functionality (experts only)
     m # print help (for GPT)
     n # change partition name No.1
     1 # partition number
   EFI # new name No.1
     n # change partition name No.2
     2 # partition number
 RAID1 # new name No.2
     p # print the partition table
     r # return to main menu
     p # print the partition table
     w # write table to disk and exit

Creating two partitions on `SDB` for `EFI` and mirror array

cat << FDISK | fdisk "${SDB:-/dev/sdb}"
     g # create a new empty GPT partition table
     n # add a new partition No.1
     1

 +100M
     p # print the partition table
     n # add a new partition No.2
     2


     p # print the partition table
     t # change a partition type No.1
     1
     1
     t # change a partition type No.2
     2
    42
     p # print the partition table
     x # extra functionality (experts only)
     n # change partition name No.1
     1
   EFI
     n # change partition name No.2
     2
 RAID1
     p # print the partition table
     r # return to main menu
     p # print the partition table
     w # write table to disk and exit
FDISK

Comments are allowed only when calling commands Spaces at the beginning and end of commands and values are ignored

Creating a mirror array with MDADM

MDADM - Multiple Disk and Device Management

Download lists of new packages

apt update

Installing the `mdadm` package on a LIVE system

apt install mdadm

Creating a mirror array `/dev/md0`

mdadm --verbose --create /dev/md0 --level 1 --raid-devices 2 "${SDA:-/dev/sda}2" "${SDB:-/dev/sdb}2"

Checking the RAID array status

watch --interval=1 cat /proc/mdstat

Additional commands for MDADM

Show help
mdadm --help
Display details of an array
mdadm --verbose --detail --scan | grep '^ARRAY'
Save the array configuration
nano /etc/mdadm/mdadm.conf
Stop the array
mdadm --verbose --stop /dev/md0
Assemble a previously created array
mdadm --verbose --assemble --scan
Hotadd subsequent devices to the array
mdadm --verbose /dev/md0 --add /dev/sdc2
Subsequent devices are re-added
mdadm --verbose /dev/md0 --re-add /dev/sde2
Delete super-blocks on the disks from which the array is assembled
mdadm --verbose --zero-superblock /dev/sda2 /dev/sde2

RAID encryption with LUKS

LUKS - Linux Unified Key Setup

Encrypting `/dev/md0`

cryptsetup --verbose luksFormat --pbkdf pbkdf2 /dev/md0

Unlocking `/dev/md0` to `/dev/mapper/rootfs`

This command unlocks /dev/md0 on /dev/mapper/rootfs

cryptsetup --verbose luksOpen /dev/md0 rootfs

Additional commands for LUKS

Show help
cryptsetup --help
Close device (remove mapping)
cryptsetup close /dev/mapper/rootfs
Show device status
cryptsetup status /dev/mapper/rootfs
Dump LUKS partition information
cryptsetup luksDump /dev/md0
Add key to LUKS device
cryptsetup luksAddKey /dev/md0 [<new key file>]
Changes supplied key or key file of LUKS device
cryptsetup luksChangeKey /dev/md0 <key slot>
Removes supplied key or key file from LUKS device
cryptsetup luksRemoveKey /dev/md0 [<new key file>]
Wipes key with number <key slot> from LUKS device
cryptsetup luksKillSlot /dev/md0 <key slot>

Creating LVM

LVM - Logical volume manager

Initializing `/dev/mapper/rootfs` to use LVM

pvcreate --verbose /dev/mapper/rootfs

Display various attributes of physical volume(s)
pvdisplay
or display information about physical volumes
pvs

Creating a volume group `os` on `/dev/mapper/rootfs`

vgcreate --verbose os /dev/mapper/rootfs

Display volume group information
vgdisplay
or display information about volume groups
vgdisplay

Creating the `boot` logical volume

lvcreate --verbose --size 1G -n boot os

Creating the `root` logical volume

lvcreate --verbose --size 50G -n root os

Creating the `home` logical volume

lvcreate --verbose --extents 100%FREE -n home os

Display information about a logical volume
lvdisplay
or display information about logical volumes
lvs

Additional commands for LVM

Deactivation/activation LVM
Deactivating Volume Groups:
vgchange --verbose --activate n os
Activating Volume Groups:
vgchange --verbose --activate y os
Rename LVM
Rename a logical volume:
lvrename --verbose os root linux
or:
lvrename --verbose /dev/os/root linux
Rename a volume group:
vgrename --verbose os sys
Remove LVM
Remove logical volume(s):
lvremove --verbose /dev/os/boot
lvremove --verbose /dev/os/root
lvremove --verbose /dev/os/home
or remove all logical volumes in the volume group:
lvremove --verbose os
Remove volume group(s):
vgremove --verbose os
Remove LVM label(s) from physical volume(s):
pvremove --verbose /dev/mapper/rootfs

Creating a file systems

Format the EFI partition:

mkfs.fat -v -F 32 -n EFI "${SDA:-/dev/sda}1"

/dev/sdb1 - do not format

Format the boot partition:

mkfs.ext2 -v -L boot /dev/mapper/os-boot

Format the root partition:
```
mkfs.xfs -L root /dev/mapper/os-root
```

Format the home partition:

mkfs.xfs -L home /dev/mapper/os-home

Additional commands for mkfs

Remove a file system
dd if=/dev/zero of=/dev/sda1 bs=512 count=1 conv=notrunc

Installing the LMDE operating system

Mounting ISO image

Create a directory for mounting ISO image:
```
mkdir --verbose /source
```

Mount the ISO image:

mount --verbose --options loop --types squashfs /run/live/medium/live/filesystem.squashfs /source

Mounting `root` partition

Create a directory to mount the root partition of the future LMDE operating system:
```
mkdir --verbose /target
```

Mount the root (/) partition:

mount --verbose /dev/mapper/os-root /target

Create directories to mount the boot and home partitions:
```
mkdir --verbose /target/{boot,home}
```

Mount the home partition:

mount --verbose /dev/mapper/os-home /target/home

Mount the boot partition:

mount --verbose /dev/mapper/os-boot /target/boot

Create a directory to mount the EFI partition:
```
mkdir --verbose /target/boot/efi
```

Mount the EFI partition:

mount --verbose "${SDA:-/dev/sda}1" /target/boot/efi

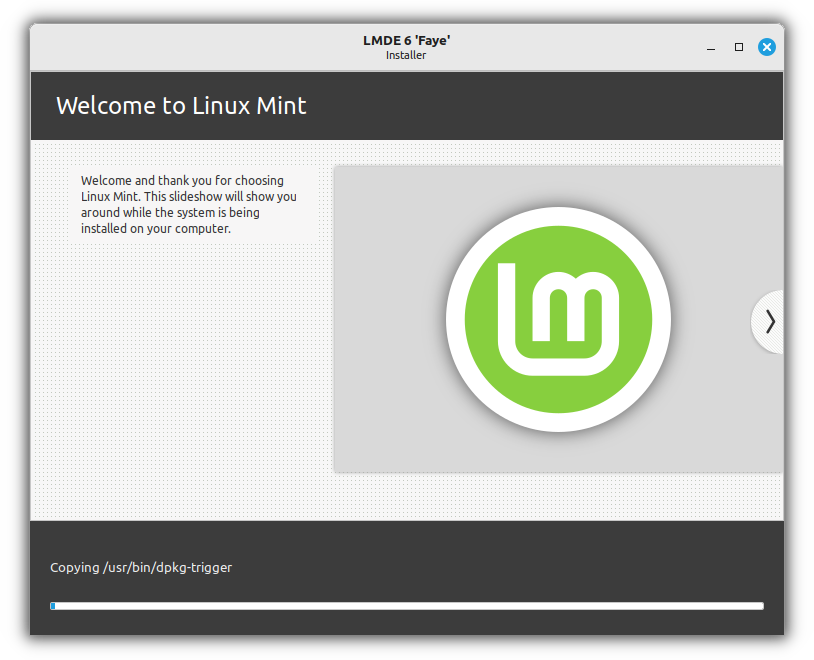

Copying system files

LMDE Copying system files

Copy the operating system files from the ISO image to the root partition:
```
rsync --verbose --archive /source/ /target/
```

Copy the local domain name system configuration file:

cp -vf /etc/resolv.conf /target/etc/

Check

cat /target/etc/resolv.conf

Unmount ISO image

umount --verbose /source

Configuring the LMDE operating system

Entering the system

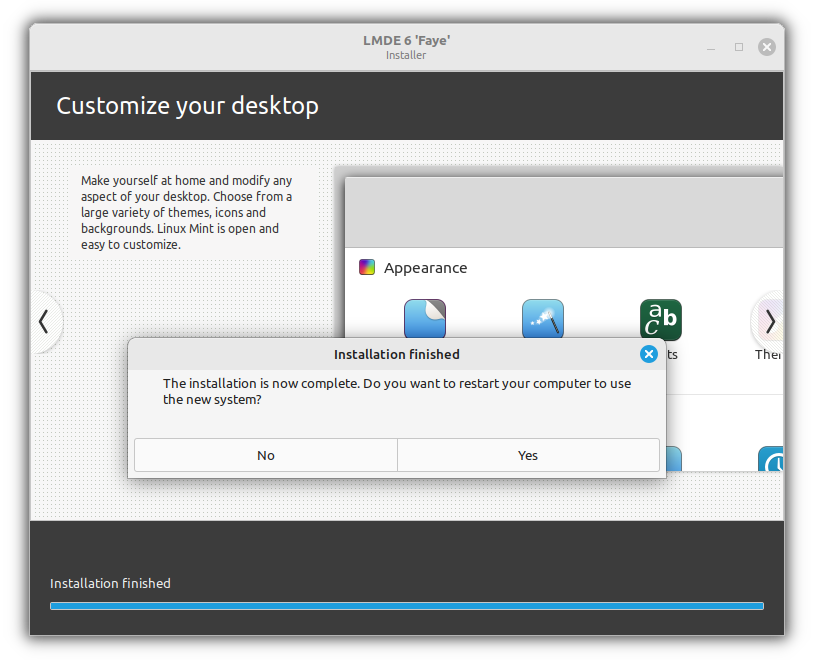

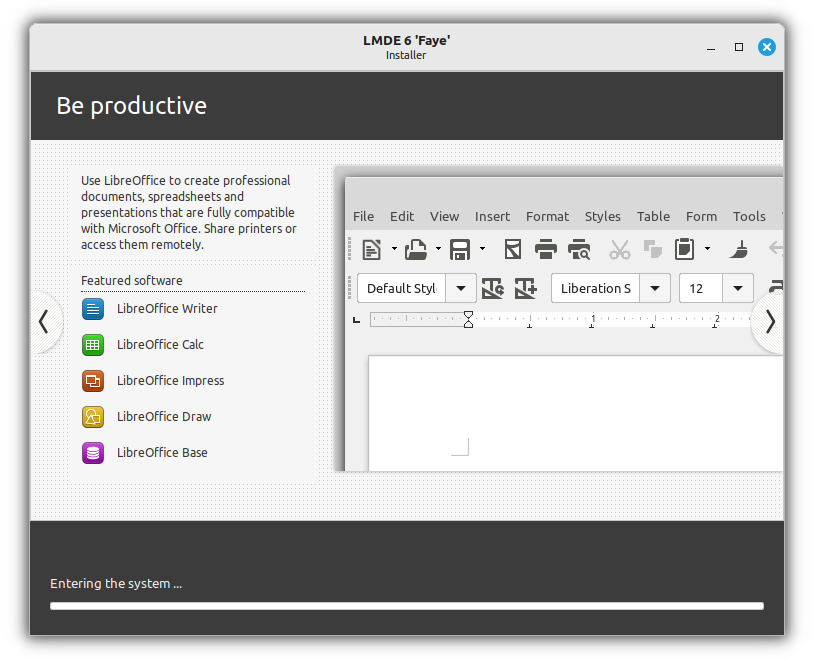

LMDE restart system

Mount the system directories of the LIVE system to the root partition of the future LMDE operating system:

for FS in /proc /run /tmp /sys /sys/firmware/efi/efivars /dev /dev/shm /dev/pts
do
    mount --verbose --bind "$FS" "/target$FS"
done

--bind - mount a subtree somewhere else

Make /target the root directory:
```
chroot /target
```

Configuring locale

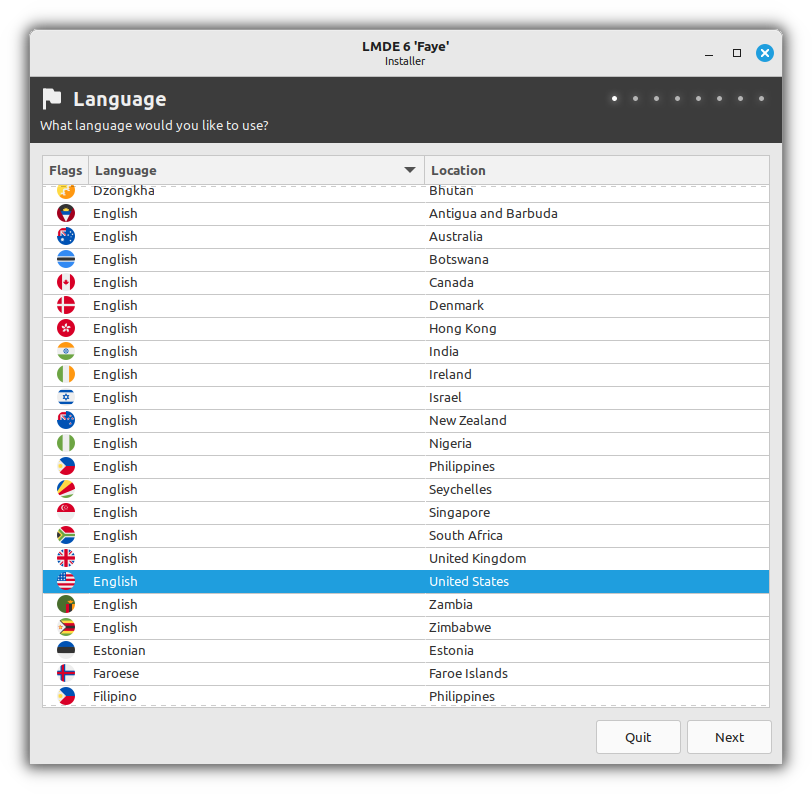

LMDE Language

dpkg-reconfigure locales

cat <<LOCALE > /etc/default/locale
#  File generated by update-locale
LC_CTYPE="en_US.UTF-8"
LC_ALL="en_US.UTF-8"
LANG="en_US.UTF-8"
LANGUAGE="en_US:en"
LOCALE

Check

cat /etc/default/locale

Configuring time

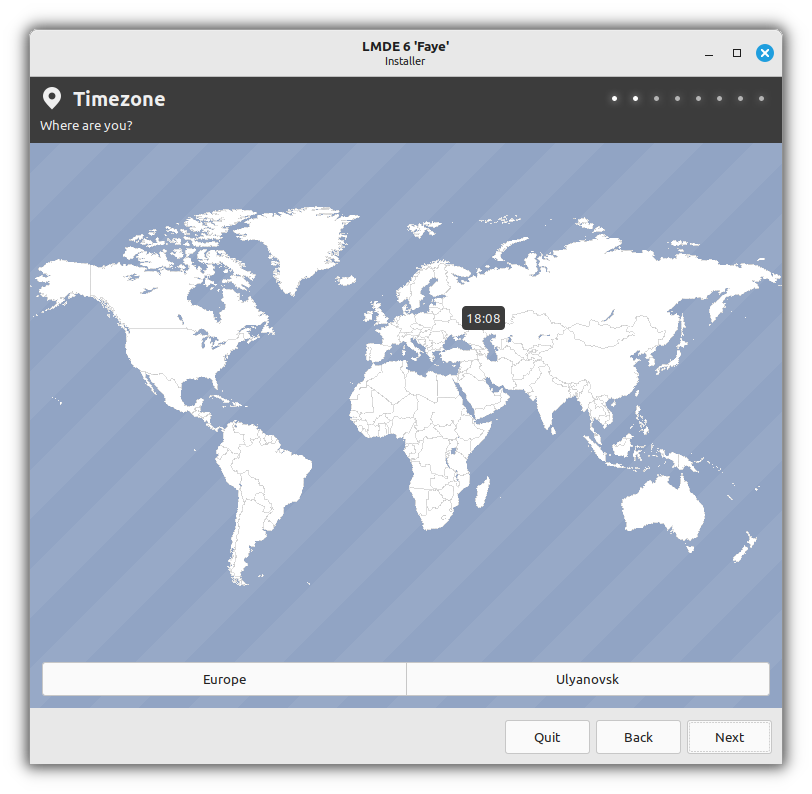

LMDE Timezone

dpkg-reconfigure tzdata

Configuring keyboard

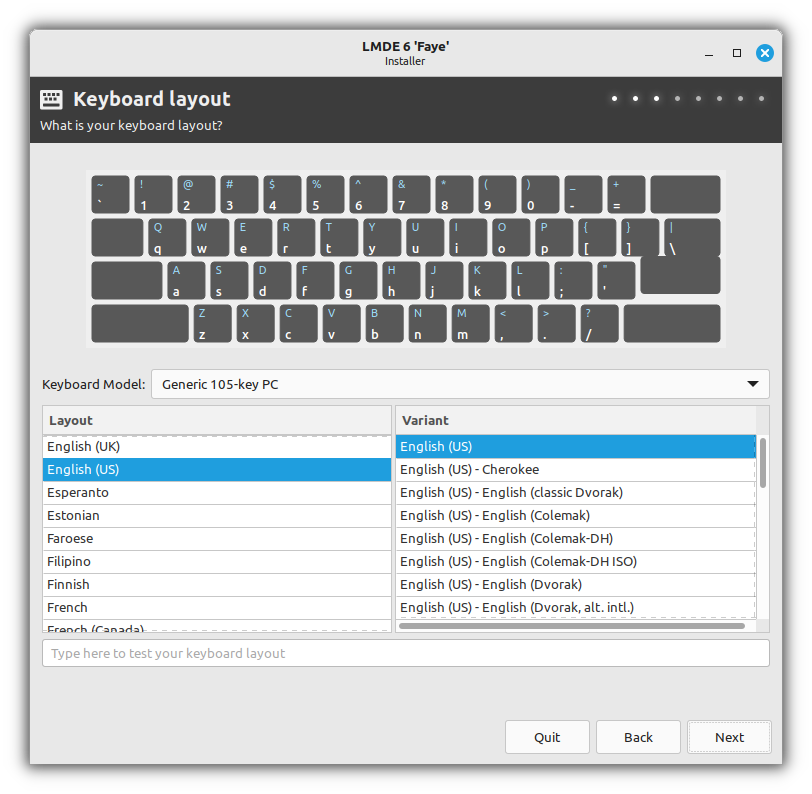

LMDE Keyboard layout

dpkg-reconfigure keyboard-configuration

Editing the `/etc/hostname` file

echo "${HOST_NAME:-lmde}" > /etc/hostname

Check

cat /etc/hostname

Editing the `/etc/hosts` file

Save a text file that contains a database of domain names and is used when translating them to network host addresses

cat <<HOSTS > /etc/hosts
127.0.0.1   localhost
127.0.1.1   ${HOST_NAME:-lmde}

# The following lines are desirable for IPv6 capable hosts
::1     ip6-localhost ip6-loopback
fe00::0 ip6-localnet
ff00::0 ip6-mcastprefix
ff02::1 ip6-allnodes
ff02::2 ip6-allrouters
ff02::3 ip6-allhosts
HOSTS

Check

cat /etc/hosts

Editing the `/etc/fstab` file

Get UUID of the system partitions:

 EFI_UUID="$(blkid --match-tag UUID --output value "${SDA:-/dev/sda}1")"
BOOT_UUID="$(blkid --match-tag UUID --output value /dev/mapper/os-boot)"
ROOT_UUID="$(blkid --match-tag UUID --output value /dev/mapper/os-root)"
HOME_UUID="$(blkid --match-tag UUID --output value /dev/mapper/os-home)"

Check

echo " EFI_UUID: $EFI_UUID"
echo "BOOT_UUID: $BOOT_UUID"
echo "ROOT_UUID: $ROOT_UUID"
echo "HOME_UUID: $HOME_UUID"

Save the mounting points of the system partitions:

cat <<FSTAB > /etc/fstab
# /etc/fstab: static file system information.
#
# Use 'blkid' to print the universally unique identifier for a
# device; this may be used with UUID= as a more robust way to name devices
# that works even if disks are added and removed. See fstab(5).
#
# <file system>                           <mount point>  <type> <options> <dump> <pass>
proc                                      /proc          proc   defaults  0      0
UUID=$ROOT_UUID /              xfs    defaults  0      1
UUID=$HOME_UUID /home          xfs    defaults  0      0
UUID=$BOOT_UUID /boot          ext2   defaults  0      1
UUID=$EFI_UUID                            /boot/efi      vfat   defaults  0      1
FSTAB

Check

cat /etc/fstab

Set the root user password

passwd root

Creating a user

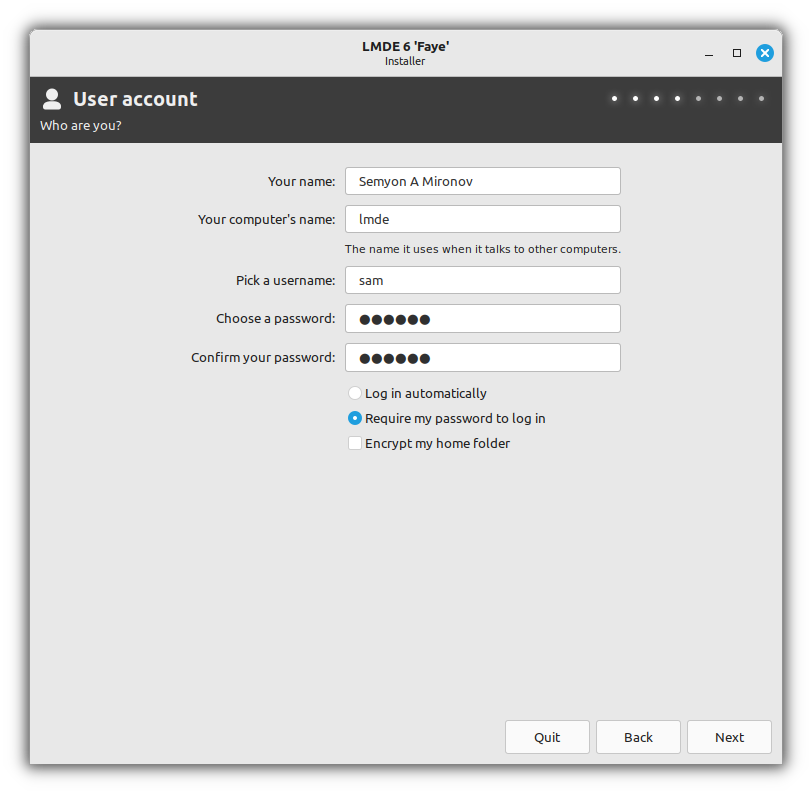

LMDE user

Set variables for use in subsequent commands:

USER_NAME="sam"                # name of the user to be created
FULL_NAME="Semyon A Mironov"   # full name of the user to be created

Create a user:

useradd --create-home ${FULL_NAME:+--comment "$FULL_NAME"} --shell /bin/bash -G adm,audio,bluetooth,cdrom,dialout,dip,fax,floppy,lpadmin,netdev,plugdev,scanner,sudo,tape,users,video "$USER_NAME"

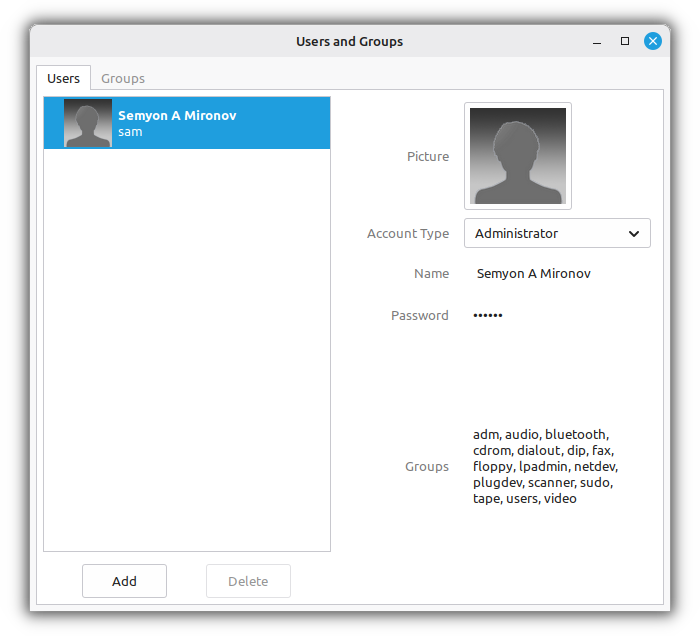

LMDE User and groups

Delete a user

deluser --remove-home "$USER_NAME"

Set user passwords:
```
passwd "$USER_NAME"
```

Configuring LUKS with password unlock

Editing the `/etc/crypttab` file

Get UUID of LUKS device:

LUKS_UUID="$(cryptsetup luksUUID /dev/md0)"

Check

echo "LUKS_UUID: $LUKS_UUID"

Save configuration for encrypted block devices:

cat <<CRYPTTAB > /etc/crypttab
# <target name> <source device>                           <key file> <options>
rootfs          UUID=$LUKS_UUID none       luks,discard
CRYPTTAB

Check

cat /etc/crypttab

Configuring LUKS with USB unlock

Creating three partitions on a USB drive for `EFI`, `boot` and user data

Insert the USB drive into the host and define it in the lsblk output

Set variables for use in subsequent commands:

USB_DRIVE="/dev/sdc"             # USB drive from the `lsblk` output
USB_DRIVE_MOUNT_POINT="/media"   # Specify an existing empty directory for connecting the USB drive
CRYPTTAB_KEY="my_key.lek"        # Name of the key file to create on the USB drive
LUKS_SCRIPT="/bin/luksunlockusb" # Name and path to the script to unlock using CRYPTTAB_KEY

Check

echo "            USB_DRIVE: ${USB_DRIVE:-/dev/sdc}"
echo "USB_DRIVE_MOUNT_POINT: $USB_DRIVE_MOUNT_POINT"
echo "         CRYPTTAB_KEY: $CRYPTTAB_KEY"
echo "          LUKS_SCRIPT: $LUKS_SCRIPT"

Creat partitions on USB drive:

cat << FDISK | fdisk "${USB_DRIVE:-/dev/sdc}"
     g # create a new empty GPT partition table
     n # add a new partition No.1
     1

 +100M
     p # print the partition table
     n # add a new partition No.2
     2

   +1G
     p # print the partition table
     n # add a new partition No.3
     3


     p # print the partition table
     t # change a partition type No.1
     1
     1
     p # print the partition table
     x # extra functionality (experts only)
     n # change partition name No.1
     1
EFIUSB
     p # print the partition table
     n # change partition name No.2
     2
BOOTUSB
     p # print the partition table
     n # change partition name No.3
     3
   USB
     p # print the partition table
     r # return to main menu
     p # print the partition table
     w # write table to disk and exit
FDISK

Creating a file systems on USB drive

Format the EFIUSB partition:

mkfs.fat -F 32 -v -n EFIUSB "${USB_DRIVE:-/dev/sdc}1"

Format the BOOTUSB partition:

mkfs.ext2 -v -L BOOTUSB "${USB_DRIVE:-/dev/sdc}2"

Format the USB partition:

mkfs.exfat --volume-label USB "${USB_DRIVE:-/dev/sdc}3"

Mounting USB drive

Mount the BOOTUSB partition:

mount --verbose "${USB_DRIVE:-/dev/sdc}2" "$USB_DRIVE_MOUNT_POINT"

Create a directory to mount the EFIUSB partition:
```
mkdir --verbose "$USB_DRIVE_MOUNT_POINT/efi"
```

Mount the EFIUSB partition:

mount --verbose "${USB_DRIVE:-/dev/sdc}1" "$USB_DRIVE_MOUNT_POINT/efi"

Creating LUKS encryption key

Change the shell working directory:
```
cd "$USB_DRIVE_MOUNT_POINT/efi"
pwd
```
Create a 256 byte key file with random data (.lek = LUKS Encryption Key):
```
dd if=/dev/urandom bs=1 count=256 > "$CRYPTTAB_KEY"
```
The contents of the key file can be anything, for example, a photo

Add key to LUKS device:

cryptsetup --verbose luksAddKey /dev/md0 "$CRYPTTAB_KEY"

Go back to the previous directory:
```
cd -
pwd
```

Creating a script to search for the LUKS encryption key

Get UUID of LUKS device:

LUKS_UUID="$(cryptsetup luksUUID /dev/md0)"

Check

echo "LUKS_UUID: $LUKS_UUID"

Create a script that will search for the key on USB drive during boot

Script for any USB drive

cat <<SCRIPT > "$LUKS_SCRIPT"
#!/bin/sh
sleep 3
test -d /mnt || {
    test ! -e /mnt && mkdir /mnt 2>/dev/null
} &&
for USB_UUID in /dev/disk/by-uuid/*
do
    if mount "\$USB_UUID" /mnt
    then
        for CRYPTTAB_KEY_FILE in "\$CRYPTTAB_KEY" "\$CRYPTTAB_KEY.lek"
        do
            test -f "/mnt/\$CRYPTTAB_KEY_FILE" || continue
            cat     "/mnt/\$CRYPTTAB_KEY_FILE" || break
            umount /mnt || :
            exit
        done
        umount /mnt || :
    fi
done 2>/dev/null || :

# Please comment out this line if you don't want to ask for a password
/lib/cryptsetup/askpass "Please unlock disk (\$CRYPTTAB_NAME): "
SCRIPT

Check

cat "$LUKS_SCRIPT"

Script for one specific USB drive

Get UUID of USB device:

USB_UUID="$(blkid --match-tag UUID --output value "${USB_DRIVE}1")"

Check

echo "USB_UUID: $USB_UUID"

Save script:

cat <<SCRIPT > "$LUKS_SCRIPT"
#!/bin/sh
sleep 3
test -e "/dev/disk/by-uuid/$USB_UUID" && {
    test -d /mnt || {
        test ! -e /mnt && mkdir /mnt
    } &&
    mount "/dev/disk/by-uuid/$USB_UUID" /mnt && {
        for CRYPTTAB_KEY_FILE in "\$CRYPTTAB_KEY" "\$CRYPTTAB_KEY.lek"
        do
            test -f "/mnt/\$CRYPTTAB_KEY_FILE" || continue
            cat     "/mnt/\$CRYPTTAB_KEY_FILE" || break
            umount /mnt || :
            exit
        done
        umount /mnt || :
    }
} 2>/dev/null || :

# Please comment out this line if you don't want to ask for a password
/lib/cryptsetup/askpass "Please unlock disk (\$CRYPTTAB_NAME): "
SCRIPT

Check

cat "$LUKS_SCRIPT"

WARNING: If you decide to comment out the password request string in the script, then make sure to perform a pre-test using a key from a USB storage device. Otherwise, you will lose access to the encrypted data.

Make the script executable:

chmod --verbose u+rwx,go+rx "$LUKS_SCRIPT"

Editing the `/etc/crypttab` file to use a script

cat <<CRYPTTAB > /etc/crypttab
# <target name> <source device>                           <key file> <options>
rootfs          UUID=$LUKS_UUID $CRYPTTAB_KEY luks,discard,keyscript=/bin/luksunlockusb
CRYPTTAB

Check

cat /etc/crypttab

Update list of available packages

apt update

Configuring MDADM

Installing the `mdadm` package

apt install mdadm

Saving the array configuration

Display details of an array:

ARRAY="$(mdadm --verbose --detail --scan | grep '^ARRAY')"

Check

echo "$ARRAY"

Save the array configuration:

sed "s|^ARRAY.*$|$ARRAY|" -i /etc/mdadm/mdadm.conf

Check

cat /etc/mdadm/mdadm.conf

Generate an initramfs image

If you follow the steps in Configuring LUKS with USB unlock, add some initramfs modules:

cat << MODULES >> /etc/initramfs-tools/modules
vfat
nls_cp437
nls_ascii
usb_storage
libblkid
MODULES

Check

cat /etc/initramfs-tools/modules

Creating /boot/initrd.img-*:

/usr/sbin/update-initramfs.orig.initramfs-tools -c -k all

Configuring GRUB

Installing the `grub` package

apt install grub-efi

Configure `grub` to use a encrypted disk

echo 'GRUB_ENABLE_CRYPTODISK=y' >> /etc/default/grub

Installing `grup` on `SDA`

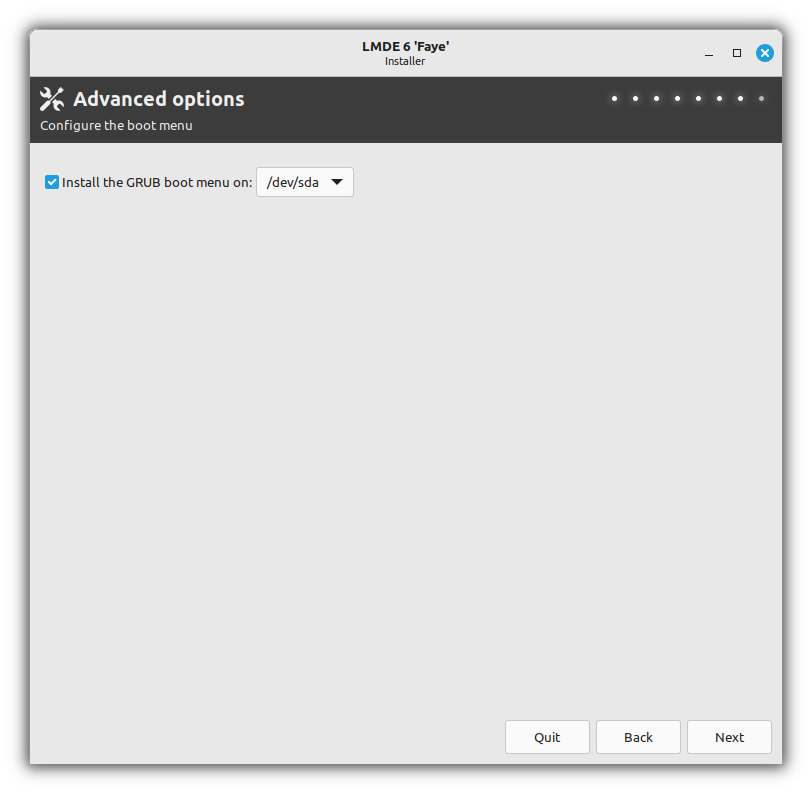

LMDE Configure the boot menu

grub-install --verbose --locales=en@quot "${SDA:-/dev/sda}"

Update `grub`

Re create a grub config file based on your disk partitioning schema

update-grub

Installing `grup` on USB drive

Follow this step if you have completed the steps described in step Configuring LUKS with USB unlock

Creating the grub/fonts/ directory on a USB drive:

mkdir --verbose --parents "$USB_DRIVE_MOUNT_POINT/grub/fonts/"

Copying the UbuntuMono16.pf2 font to USB drive:

cp --verbose /boot/grub/fonts/UbuntuMono16.pf2 "$USB_DRIVE_MOUNT_POINT/grub/fonts/"

Umount the EFI partition:
```
umount --verbose "${SDA:-/dev/sda}1"
```
Umount the boot partition:
```
umount --verbose /dev/mapper/os-boot
```

Umount the EFIUSB partition:

umount --verbose "${USB_DRIVE:-/dev/sdc}1"

Umount the BOOTUSB partition:

umount --verbose "${USB_DRIVE:-/dev/sdc}2"

Mount the BOOTUSB partition:

mount --verbose "${USB_DRIVE:-/dev/sdc}2" /boot

Mount the EFIUSB partition:

mount --verbose "${USB_DRIVE:-/dev/sdc}1" "/boot/efi"

Installing grup on USB drive:

grub-install --verbose --locales=en@quot "${USB_DRIVE:-/dev/sdc}"

Update grub on USB drive:
```
update-grub
```

Cloning of the `EFI` partition from `SDA` on `SDB`

dd if="${SDA:-/dev/sda}1" of="${SDB:-/dev/sdb}1" bs=64K status=progress

Edit the `EFI` boot menu

Print additional information:
```
efibootmgr --verbose
```
Delete bootnum:
```
efibootmgr --delete-bootnum --bootnum 0000
```
0000 - bootloader number

Remove all unnecessary bootloaders
Add bootorder from a USB drive:

Follow this step if you have completed the steps described in step Configuring LUKS with USB unlock
```
efibootmgr --create --disk "${USB_DRIVE:-/dev/sdc}" --part 1 --label "usbkey" --loader /EFI/debian/shimx64.efi
```
Note: option --label "usbkey", where "usbkey" is an arbitrary bootloader name

Add bootorder from a SDA and SDB drives:

efibootmgr --create --disk "${SDA:-/dev/sda}" --part 1 --label "Disk1" --loader /EFI/debian/shimx64.efi
efibootmgr --create --disk "${SDB:-/dev/sdb}" --part 1 --label "Disk2" --loader /EFI/debian/shimx64.efi

Note: option --label "Disk1", where "Disk1" is an arbitrary bootloader name

Removing packages

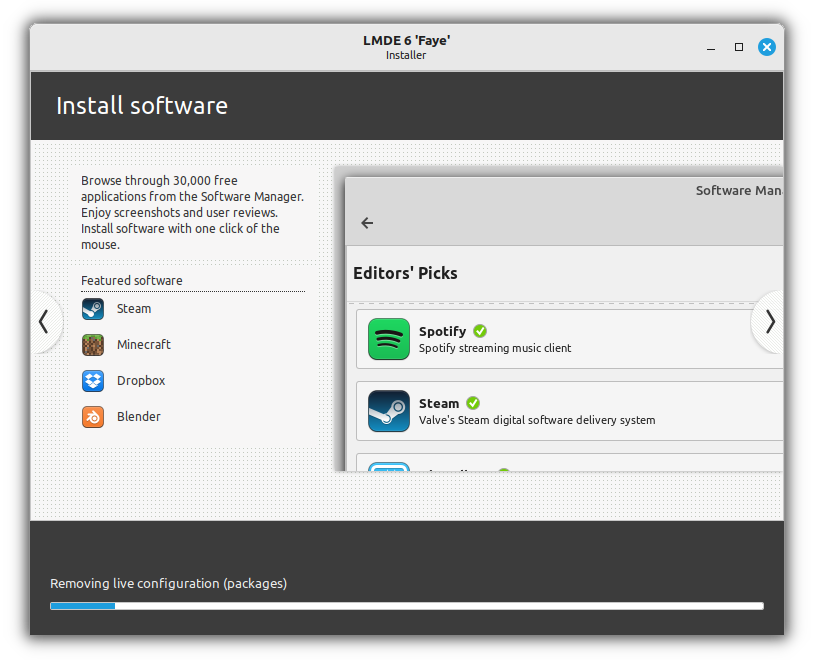

LMDE Removing live configuration

Remove packages and their system-wide configuration files

apt purge live-config* live-installer* live-boot* live-tools*

Reboot the machine

LMDE restart system

Exit the chroot environment:
```
exit
```
Reboot the machine:
```
shutdown --reboot now
```

Useful links

Installing LMDE to nvme mdadm raid

update-initramfs is disabled (live system is running without media mounted on /run/live/medium)

Using A Live CD/USB To Fix Your Current System

Best order of raid lvm and luks

Encrypted Storage with LUKS, RAID and LVM2

LVM-HOWTO

Installing LMDE6 with full disk encryption using RAID, LUKS, LVM2 and USB unlock on a computer with a UEFI bootloader

This document describes the creation of the following scheme

Table of Contents

Booting from a LIVE-iso

Select booting from a USB/CD image

Select "Start LMDE 6 64-bit"

Press e to edit the commands before booting

Add the nomodeset parameter and press F10 to boot

LMDE 6 Desktop live

Preparing a LIVE system

Open the terminal

Switch to the root user

Change the host name

Time setup in a LIVE system

Preparing the disks

Creating partitions

List information about block devices

Save the disk names to variables

Creating two partitions on SDA for EFI and mirror array

Creating two partitions on SDB for EFI and mirror array

Creating a mirror array with MDADM

Download lists of new packages

Installing the mdadm package on a LIVE system

Creating a mirror array /dev/md0

Checking the RAID array status

RAID encryption with LUKS

Encrypting /dev/md0

Unlocking /dev/md0 to /dev/mapper/rootfs

Creating LVM

Initializing /dev/mapper/rootfs to use LVM

Creating a volume group os on /dev/mapper/rootfs

Creating the boot logical volume

Creating the root logical volume

Creating the home logical volume

Creating a file systems

Installing the LMDE operating system

Mounting ISO image

Mounting root partition

Copying system files

Unmount ISO image

Configuring the LMDE operating system

Entering the system

Configuring locale

Configuring time

Configuring keyboard

Editing the /etc/hostname file

Editing the /etc/hosts file

Editing the /etc/fstab file

Set the root user password

Creating a user

Configuring LUKS with password unlock

Editing the /etc/crypttab file

Configuring LUKS with USB unlock

Creating three partitions on a USB drive for EFI, boot and user data

Creating a file systems on USB drive

Mounting USB drive

Creating LUKS encryption key

Creating a script to search for the LUKS encryption key

Editing the /etc/crypttab file to use a script

Update list of available packages

Configuring MDADM

Installing the mdadm package

Saving the array configuration

Generate an initramfs image

Configuring GRUB

Installing the grub package

Configure grub to use a encrypted disk

Installing grup on SDA

Update grub

Installing grup on USB drive

Cloning of the EFI partition from SDA on SDB

Edit the EFI boot menu

Removing packages

Reboot the machine

Useful links

Press `e` to edit the commands before booting

Add the `nomodeset` parameter and press `F10` to boot

Creating two partitions on `SDA` for `EFI` and mirror array

Creating two partitions on `SDB` for `EFI` and mirror array

Installing the `mdadm` package on a LIVE system

Creating a mirror array `/dev/md0`

Encrypting `/dev/md0`

Unlocking `/dev/md0` to `/dev/mapper/rootfs`

Initializing `/dev/mapper/rootfs` to use LVM

Creating a volume group `os` on `/dev/mapper/rootfs`

Creating the `boot` logical volume

Creating the `root` logical volume

Creating the `home` logical volume

Mounting `root` partition

Editing the `/etc/hostname` file

Editing the `/etc/hosts` file

Editing the `/etc/fstab` file

Editing the `/etc/crypttab` file

Creating three partitions on a USB drive for `EFI`, `boot` and user data

Editing the `/etc/crypttab` file to use a script

Installing the `mdadm` package

Installing the `grub` package

Configure `grub` to use a encrypted disk

Installing `grup` on `SDA`

Update `grub`

Installing `grup` on USB drive

Cloning of the `EFI` partition from `SDA` on `SDB`

Edit the `EFI` boot menu
